The E-series are Piusi's high-flow mains-powered diesel pumps — compact cast iron, self-priming rotary vane units with an integrated bypass valve and thermal overload protection, built for fixed installations on dispensers and bulk tanks.

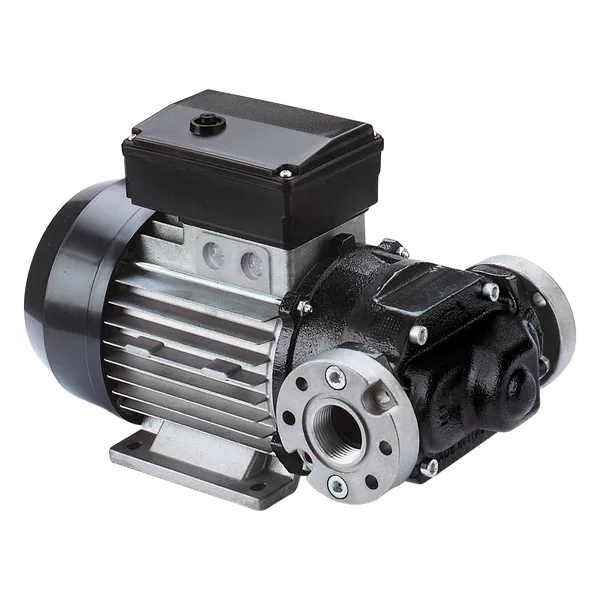

The E80 delivers 70 L/min — a step up from the Panther 72, and the sensible choice where fill times matter but an E120 is more pump than the installation needs. Thermal overload protection allows continuous running. Maximum suction height is 2 m without a non-return valve, or 4 m with one, and maximum hose run is 6 m on a 1" minimum suction line.
- Flow rate: up to 70 L/min
- Supply: 230V AC single phase
- Duty: continuous, with thermal overload protection
- Self-priming rotary vane pump
- Integrated bypass valve
- Cast iron body with anti-corrosion treatment
- Sintered steel rotor with acetal resin vanes
- Suction height: 2 m (4 m with a non-return valve)
- Maximum hose length: 6 m; suction hose 1" minimum
- Noise level below 80 dB
- Suitable for diesel
