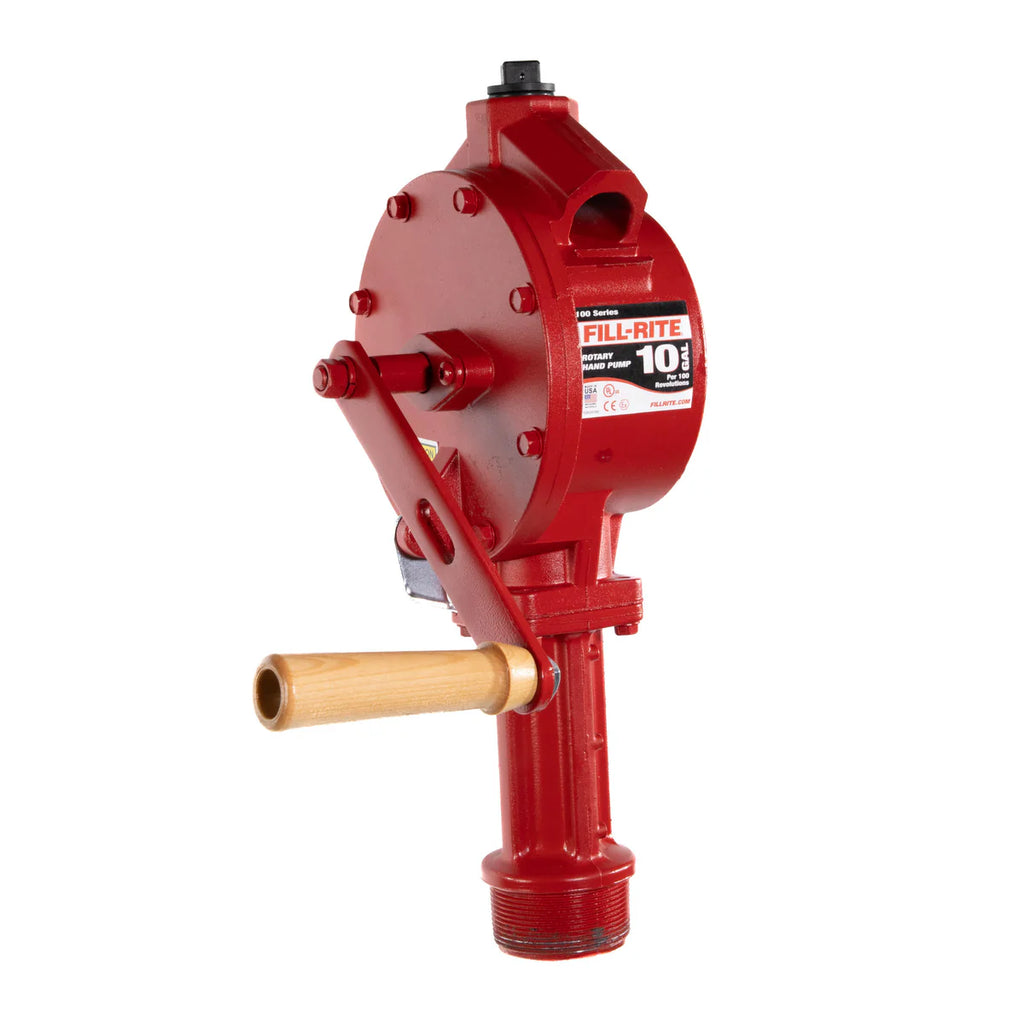

The Fill-Rite 100 Series is the rotary hand pump that has been bolted to the top of drums and farm tanks for decades. Cast aluminium, spring-loaded vanes, and 10 gallons — around 38 litres — per 100 turns of the handle.
The argument for a hand pump is not nostalgia. It needs no power, so it works in a back paddock or on a site with nothing connected; it has almost nothing to fail; and the reversible flow design means it will drain a tank as readily as fill one, which is a genuinely useful thing when you have contaminated fuel to remove.
The FR110 is the pump on its own, with installation components and no additional accessories — the right choice if you already have hose and nozzle, or are plumbing it into something existing. If you want it ready to use out of the box, the FR112 adds a discharge hose and nozzle spout.
- Fill-Rite FR110 — pump only, no accessories
- Delivers approximately 38 litres (10 gallons) per 100 rotations
- Cast aluminium construction
- Spring-loaded vanes with built-in check valve
- Built-in strainer
- Reversible flow — fills or drains a tank
- Padlock-compatible handle for theft prevention
- Anti-siphon protection and discharge nozzle storage
- 3/4" NPT discharge port
- Suitable for petrol, diesel, biodiesel to B20, E15, kerosene, mineral spirits and light oils
- UL listed
- Made in the USA
