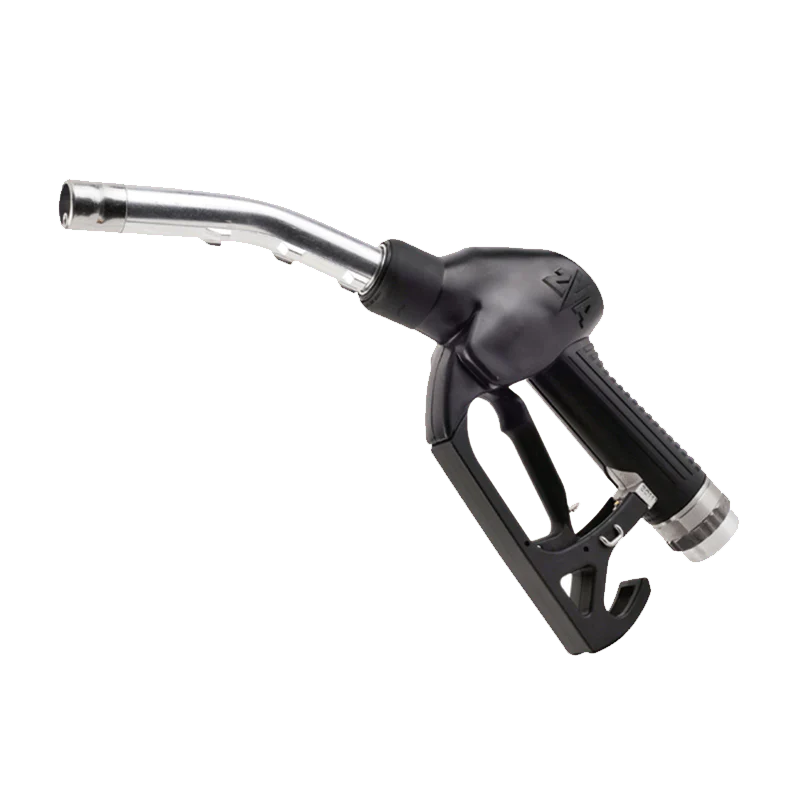

The ZVA Slimline 2 is Elaflex's flagship forecourt nozzle and the reference point the rest of the industry is measured against. DN19 (3/4"), light in the hand, and built to be rebuilt rather than replaced.
Shut-off is by Elaflex's patented venturi system with a safety cut-out attitude valve: the nozzle closes when the tank fills, and also if the spout is pointed upwards or the nozzle is dropped. The valve opens with the flow for fine control at the end of a fill and closes against it, so there is no hydraulic shock through the hose.
ZVA nozzles are modular by design, which is the whole argument for buying them. Simple repairs can be done on site, and in a workshop the nozzle strips down and rebuilds in minutes. With one or two intermediate repairs a ZVA will regularly reach ten years of service or more — which is why, despite costing more than average up front, they show the lowest total cost of ownership in the category.
Supplied with a breakaway swivel, which protects the dispenser, hose and vehicle if someone drives off still connected. Black guard.
- Elaflex ZVA Slimline 2 automatic nozzle
- Connection: DN19 (3/4")
- Patented venturi automatic shut-off with safety cut-out attitude valve
- Built-in check valve
- Three-speed lever latch
- Swivel hose inlet
- Breakaway swivel supplied
- Black guard
- Modular construction — field repairable
- Suitable for petrol, diesel, fuel oil and kerosene
