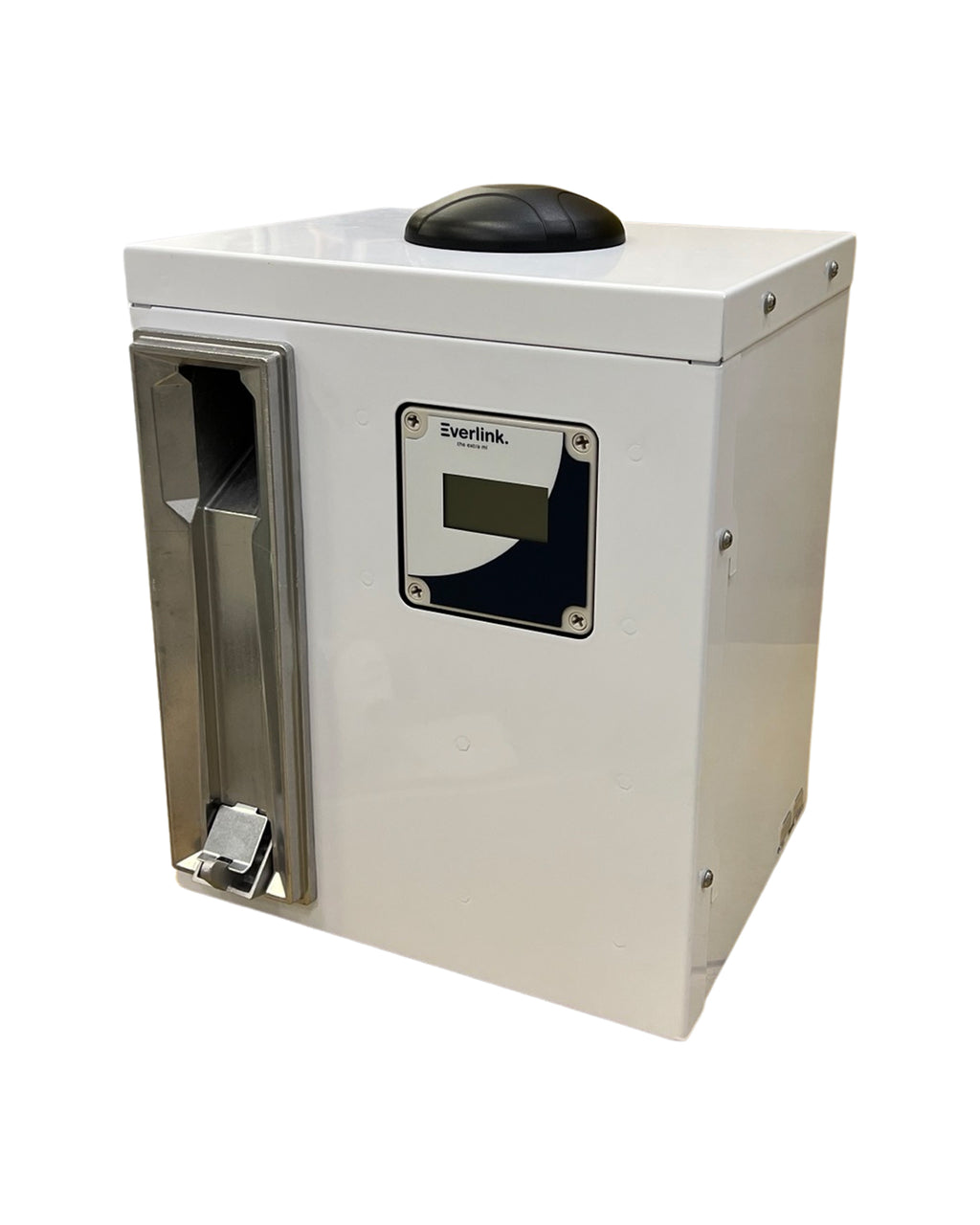

The Everlink Snap FM-AFM is the expandable member of the Snap range — a complete dispenser, Advanced Fuel Management system and integrated tank gauging in one pre-assembled unit, supplied with a Piusi E120 diesel pump delivering 100 L/min.
The difference from the Snap Micro is the controller. Where the Micro handles a single pump and stops there, the AFM controller supports a second channel out of the box and expands to manage up to six pumps or dispensers. It also speaks the New Zealand pump communication protocols — PEC, Compac and Gallagher — so it can be retrofitted alongside equipment you already own rather than replacing it. If there is any chance of a second pump, a second tank or a second fluid inside the next few years, this is the unit to buy now.
Everything reports into Clarity, Everlink's cloud-based management software — no server, no dedicated PC, accessible by multiple staff from any browser. Everlink design and manufacture in New Zealand to ISO 9001, and the enclosures are 304 stainless rather than plastic.
Configure your unit using the options above: attached or remote antenna, and whether a nozzle holster is included. Remote antenna suits installations inside buildings or behind steel that would block signal.
- All-in-one dispenser, Advanced Fuel Management and tank gauging unit
- Supplied with Piusi E120 diesel pump — 100 L/min
- Dual pump support as standard, expandable to 6 pumps or dispensers
- Second channel supports a PEM dispenser or other pump systems
- NZ pump communications — PEC, Compac and Gallagher
- Multi-fluid: diesel, AdBlue®, oil, coolant or water
- 304 stainless steel enclosure with backlit, vandal-resistant keypad
- Sunlight-readable colour graphics display
- Built-in RFID reader
- Access by PIN, RFID, fuel card, Bluetooth tag or manual asset entry
- Multiple tank ATG (auto dip) compatible
- Up to 8,000 users per dispenser
- Up to 100 security profiles per enterprise
- 80,000 transaction memory buffer — no transaction is lost
- Battery backed — part transactions survive a power failure
- Inbuilt GPS tracker for geolocating mobile tanks
- Clarity cloud-based management and reporting software
- Wall mount, or optional pedestal mount
- Designed and manufactured in New Zealand to ISO 9001
